Main performance characteristics:

Main performance characteristics I:

1.       ® High strength body structure, small deformation and high precision
2.       ® The sliding block adopts double angle hexahedral guide rail, and the sliding block guide rail adopts "high-frequency quenching" and "rail grinding process": low wear, high precision, long precision holding time, and improves the service life of the mold.
3.       ® The crankshaft is made of high-strength alloy material 42CrMo. Its strength is 1.3 times that of 45 steel and its service life is longer.
4.       ® The copper sleeve is made of tin phosphor bronze ZQSn10-1, and its strength is 1.5 times that of ordinary BC6 brass.
5.       ® The use of highly sensitive hydraulic overload protection device can effectively protect the service life of the punch and die.
6.       ® Standard Japanese SMC pressure regulating valve, lubricator, air filter.
7.       ® The standard configuration is high-precision bearing and Japanese NOK seal.
8.       ® 15.6 inch touch screen
9.       ® Optional mold pad (air cushion).

Main performance characteristics II:

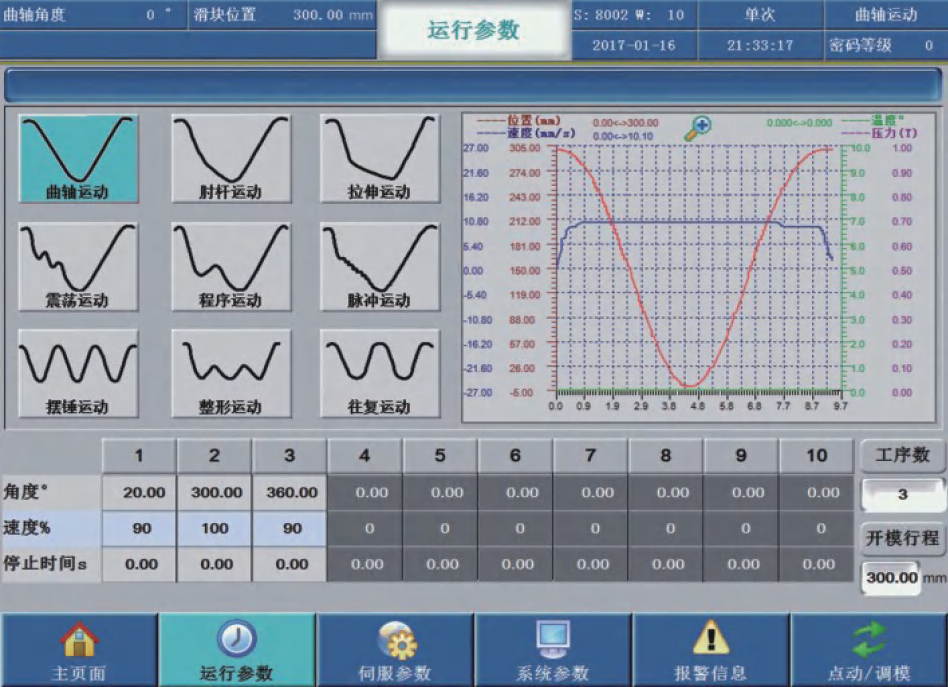

1.       ® 9 processing modes are built-in, and each product can select the processing curve most suitable for component processing,So as to achieve high precision, high efficiency and high energy conservation.
2.       ® Compared with traditional presses, it has simple structure, high mechanical transmission efficiency and low maintenance cost.
3.       ® According to the characteristics of products/materials, the stamping forming speed can be reduced during the material processing to achieve the best forming speed of products/materials. Thus reducing vibration and stamping noise; Improve product accuracy and extend the service life of the mold.
4.       ® According to different products, different heights are required. The stroke of the punch can be set arbitrarily, which greatly shortens the stamping time and improves the efficiency.

Standard configuration

Optional Configuration

Technical parameter
